Garvee 7' Confined Space Tripod Kit with 1200 lb Winch, 98' Steel Cable, Harness & Fall Arrester for Rescue
Garvee 7' Confined Space Tripod Kit with 1200 lb Winch, 98' Steel Cable, Harness & Fall Arrester for Rescue
7' Confined Space Rescue Tripod Kit with Winch, Harness and Fall Arrester
Build a portable vertical access and retrieval setup with adjustable telescoping legs, a 1200 lb manual winch, approximately 98' of steel cable, a full-body harness, fall arrester and ground protection chain.
1200 lb Winch Capacity
The hand-operated winch provides controlled vertical pulling for compatible rescue, retrieval and maintenance procedures.
7' Adjustable Tripod
Telescoping legs with multiple locking positions help configure the frame around different vertical access points.

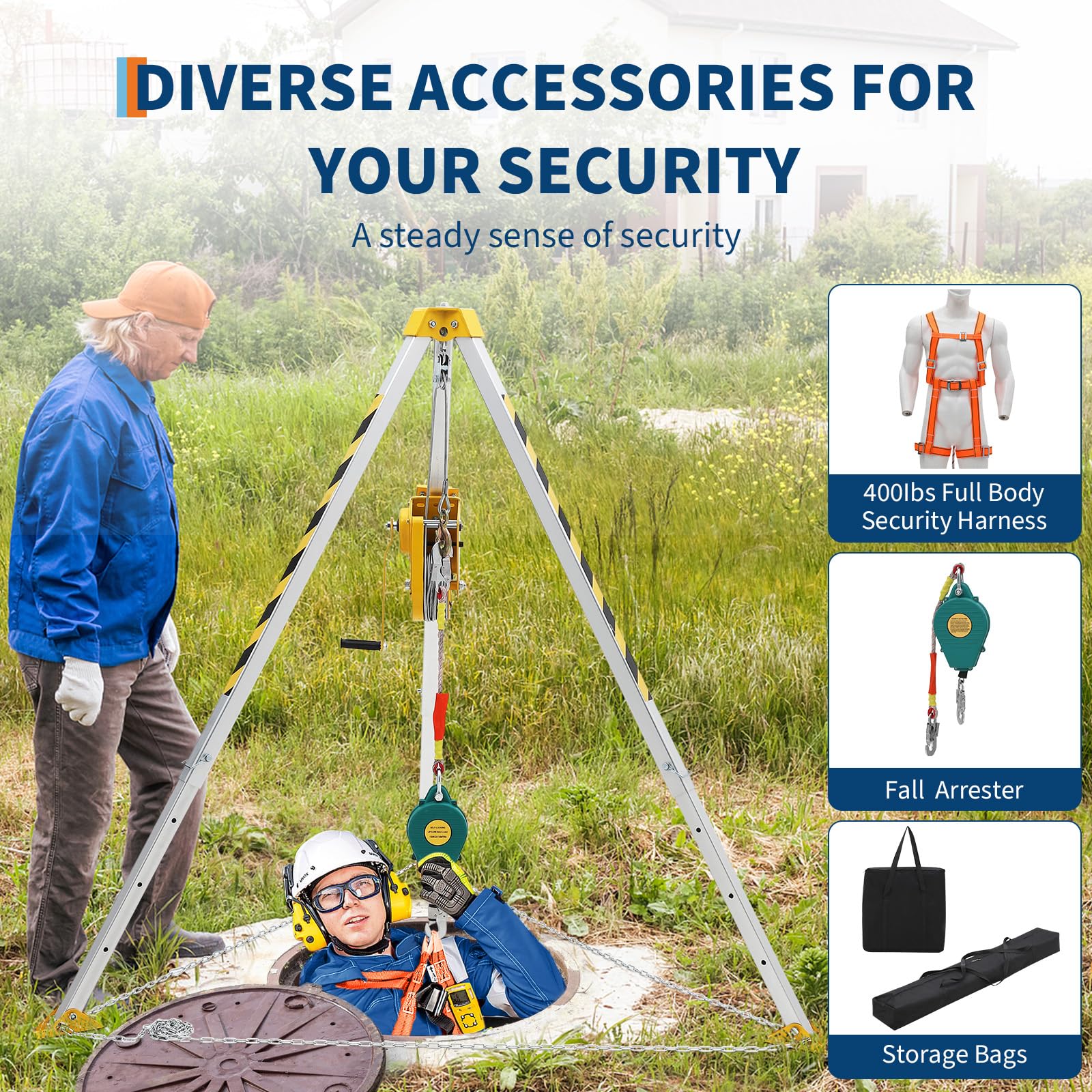

Complete Field Kit

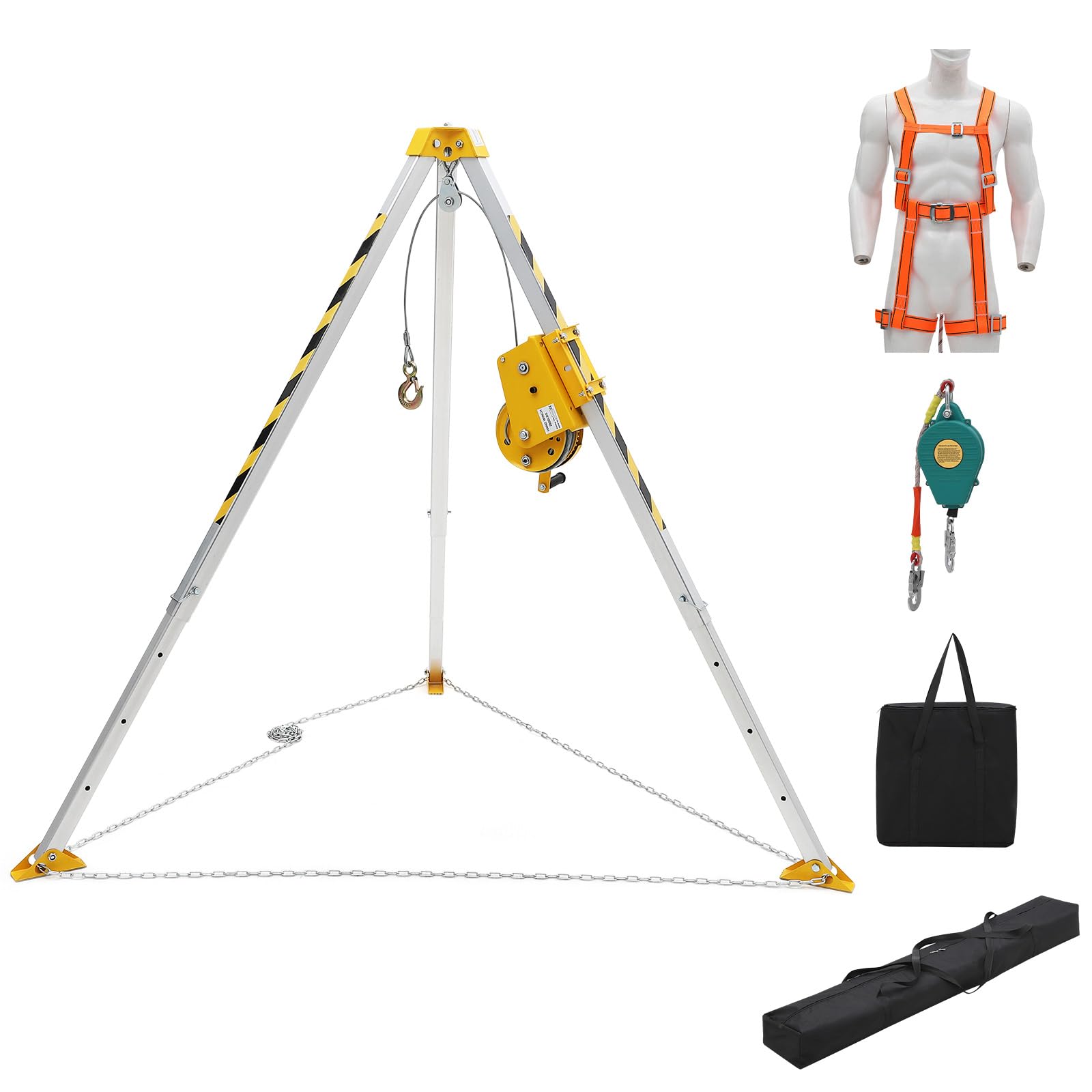

The tripod, winch, harness, fall arrester, protection chain and carrying bags are supplied as one coordinated package.
Portable Vertical Access for Confined-Space Work
The GARVEE confined-space tripod creates a three-leg support structure over compatible manholes, tanks, pits and shafts. Its adjustable frame and included lifting components support trained teams during planned rescue, retrieval and maintenance operations.
- Telescoping tripod legs: provide six adjustment positions for different setup requirements.
- Manual winch system: controls lifting and lowering through a long steel cable.
- Full-body harness: provides a wearable connection component for compatible procedures.
- Fall arrester: adds a separate fall-protection component to the supplied kit.

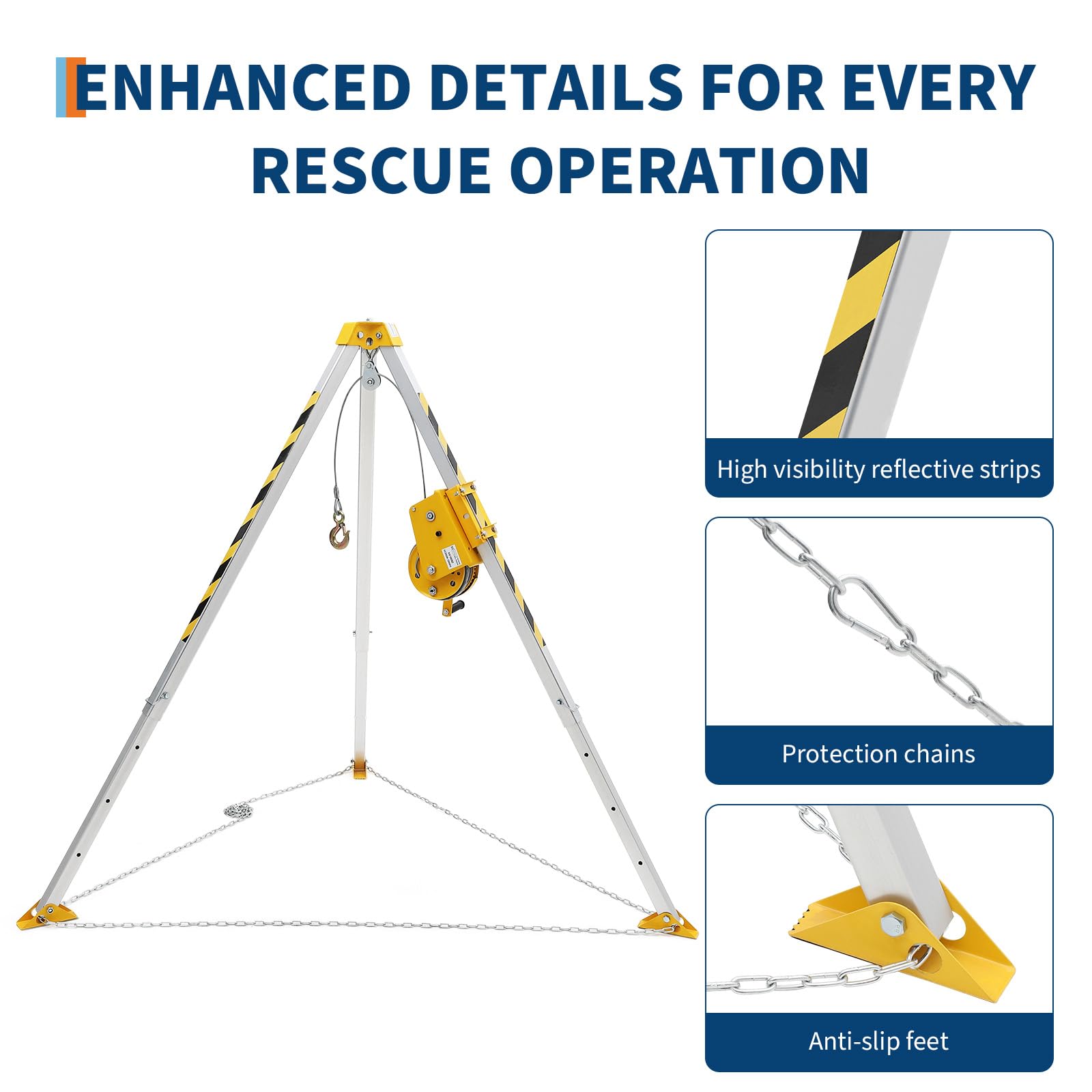

- Ground protection chain: helps control leg spread when properly assembled.

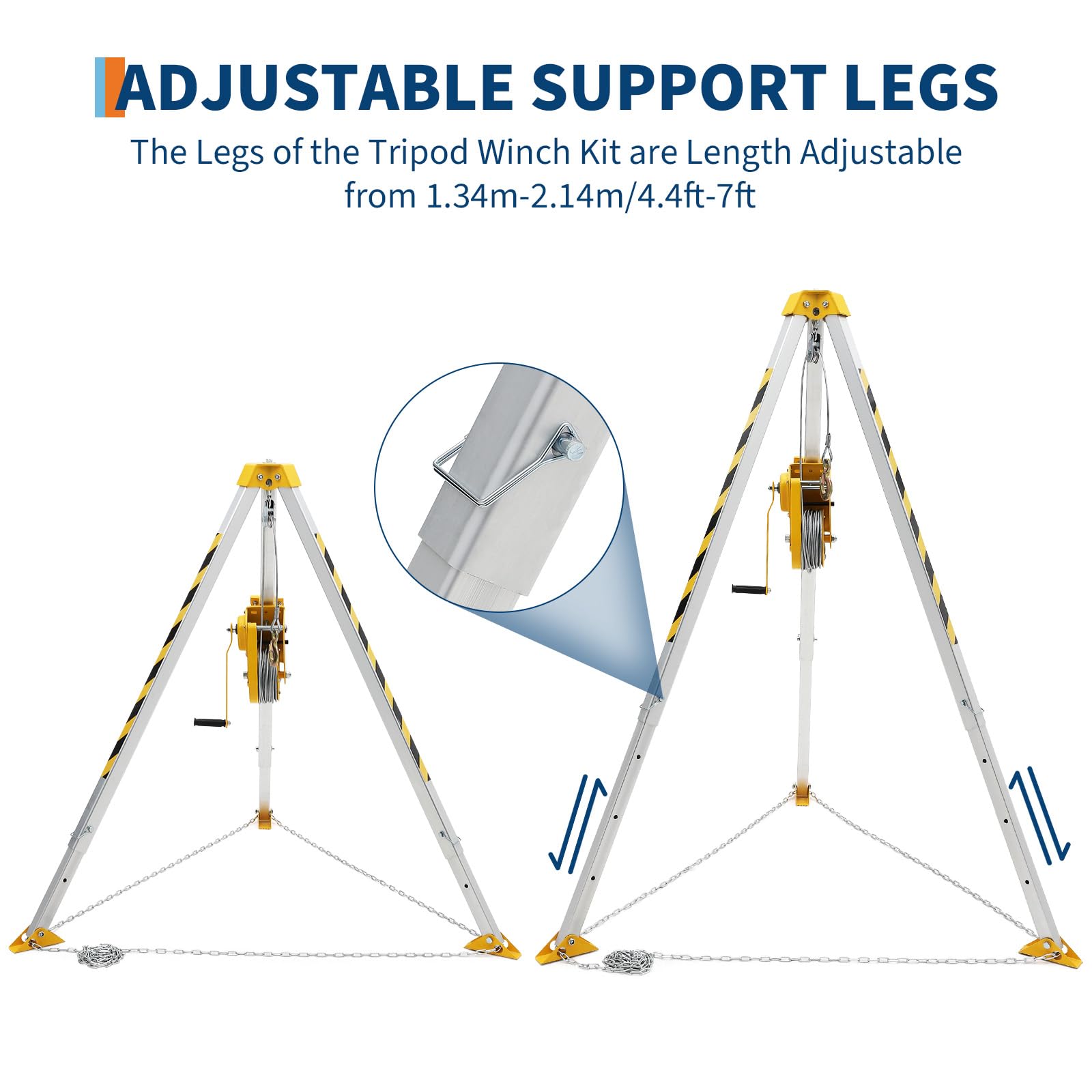

Adjustable Height with Long-Reach Steel Cable

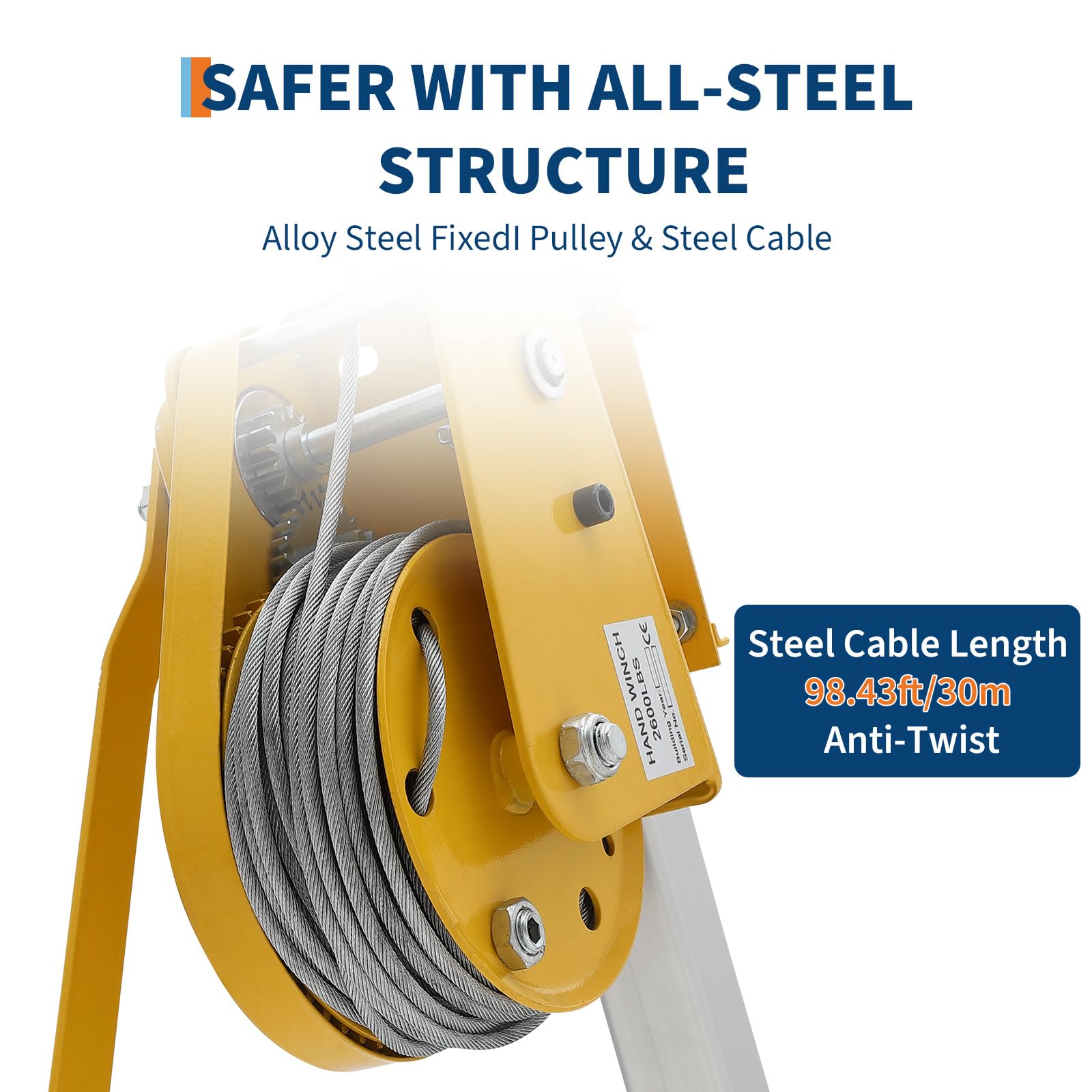

The selected tripod extends up to 7', while the manual winch uses approximately 98' of 0.16"-diameter steel cable for compatible vertical-access applications.
Made for Planned Confined-Space Procedures
Suitable applications may include municipal maintenance, tanks, manholes, tunnels, utility shafts and other vertical-entry locations when the equipment is selected, inspected and operated by trained personnel.
Designed for Industrial, Utility and Emergency Teams
The foldable three-leg structure and included carrying bags support transport between compatible worksites and planned access locations.
Basic Setup Sequence
Actual procedures must follow the site rescue plan, equipment instructions and applicable regulations.
Check the tripod, head assembly, legs, pins, chain, winch, cable, harness and fall arrester before use.
Set the tripod on a suitable surface, adjust the legs and secure all locking pins and protection chains.
Connect equipment according to the approved procedure and verify every attachment before loading the system.

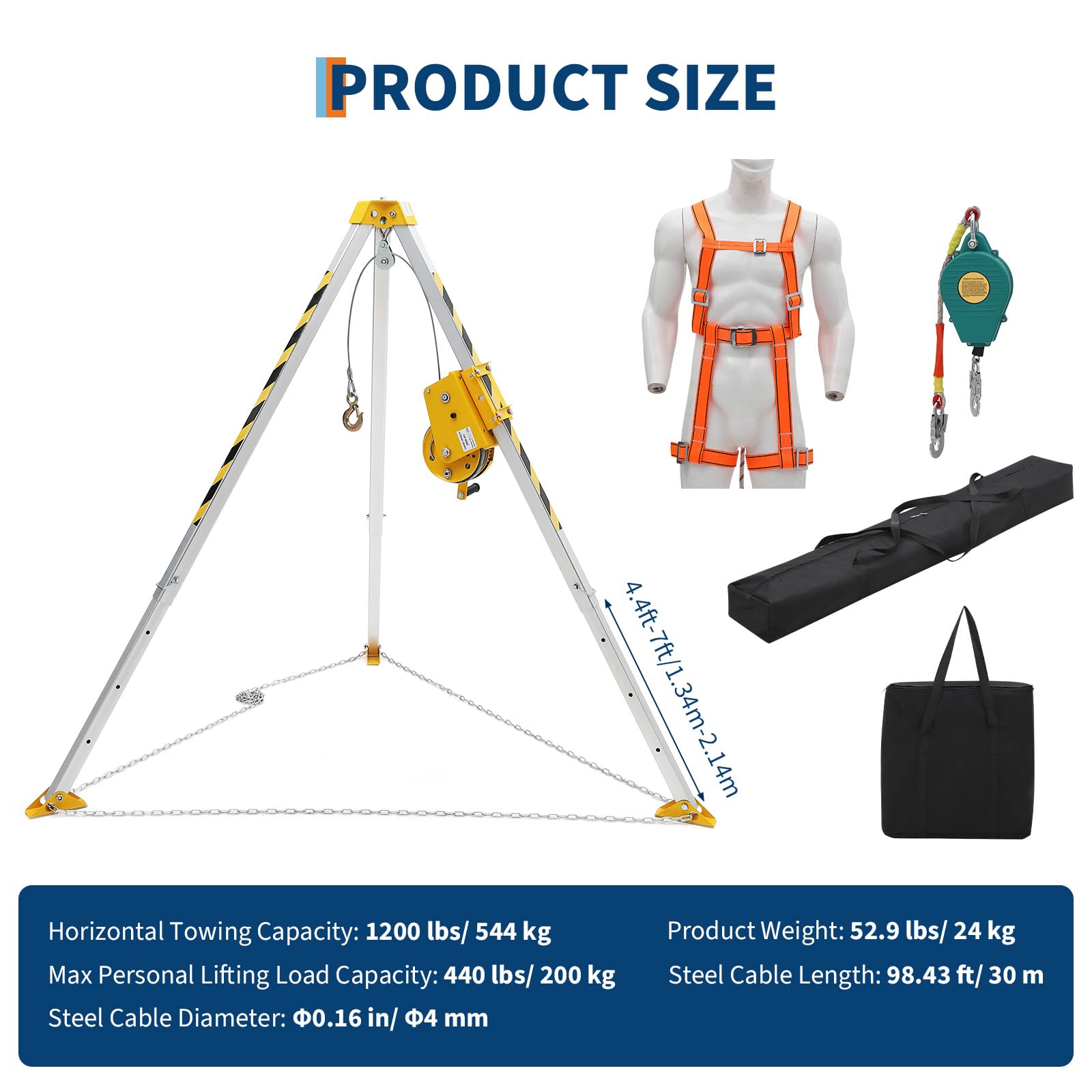

Product Specifications
| Product Type | Confined Space Rescue Tripod Kit |
|---|---|
| Selected Configuration | 7' Tripod, 1200 lb Winch, With Harness |
| Maximum Tripod Height | 7' |
| Winch Capacity | 1200 lb Vertical Pull |
| Maximum Personnel Load | 397 lb |
| Steel Cable | Approx. 98' Long × 0.16" Diameter |
| Leg Adjustment | 6 Locking Positions, Approx. 22°–60° Working Range |
| Included Components | Tripod, Manual Winch, Steel Cable, Full-Body Harness, Fall Arrester, Protection Chain and Carry Bags |
| Color | Silver and Yellow |
Critical Safety and Use Notes
- This equipment must be selected, inspected and operated by trained personnel following an approved confined-space entry and rescue plan.
- Follow all applicable local regulations, employer procedures and site-specific requirements.
- Do not exceed the 1200 lb winch rating or the stated 397 lb personnel lifting limit.
- The complete system is limited by its lowest-rated component, connection or anchor point.
- Set the tripod only on a firm, stable and suitable surface and secure every leg pin and protection chain.
- Inspect the steel cable for kinks, broken wires, corrosion or crushing before every use.
- Do not use the tripod, harness, fall arrester, winch or cable if any component is damaged, modified or missing.
- Product information is not a substitute for professional rescue training or a site-specific safety plan.
