Garvee Heavy Duty 1100 LBS Hydraulic Lift Table Cart - Manual Single Scissor Lift Jack Platform Trolley with 35" Max Height, Locking Swivel Wheels, and Non-Slip Rubber Pad, Orange and Black

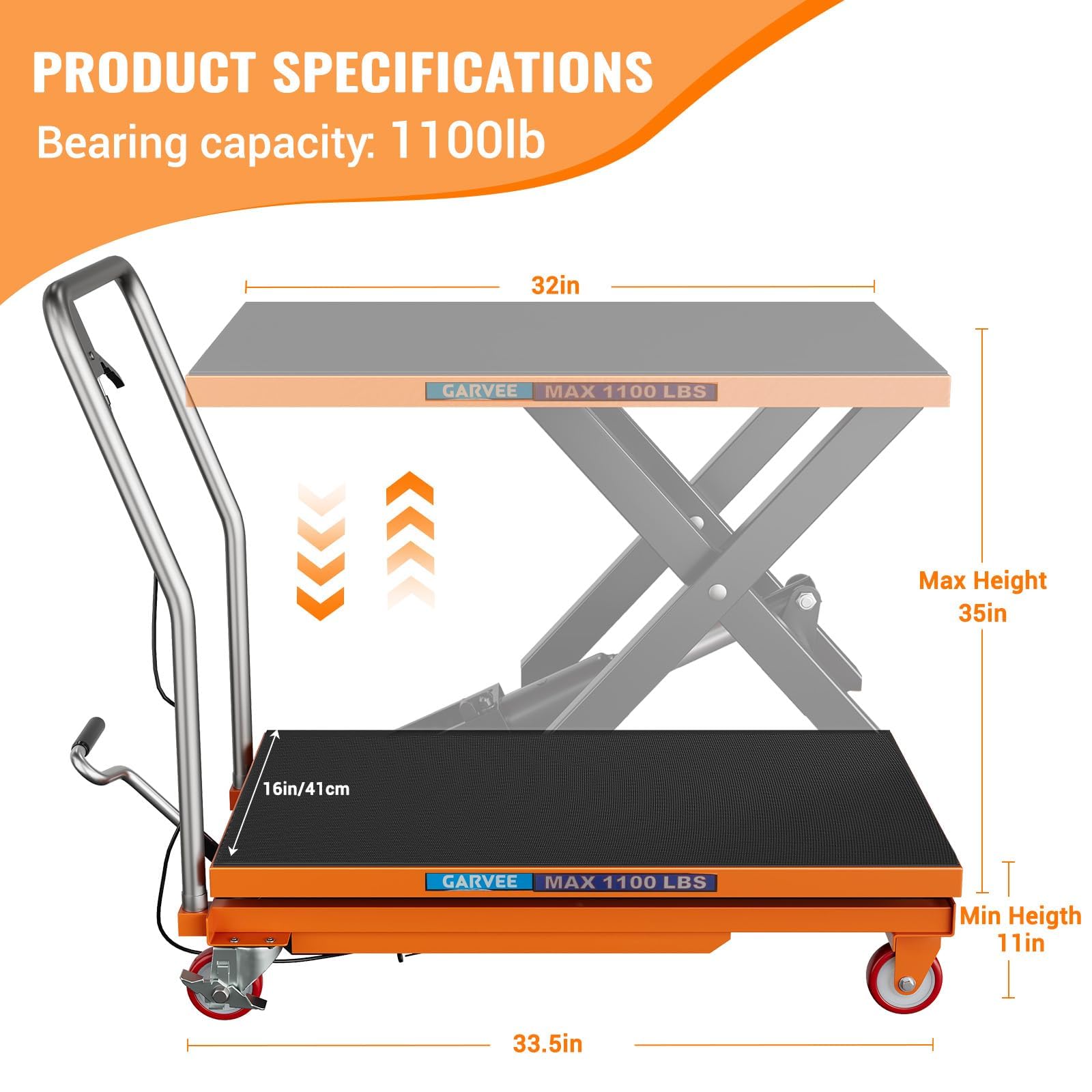

| Technical Parameter | Official Specification |
|---|---|
| Brand Name | Garvee |
| Product Classification | Hydraulic Scissor Lift Table Cart |
| Maximum Rated Load Capacity | 1100 LBS (500 kg) |
| Maximum Height Reach | 35 inches (Max Extended Travel) |
| Minimum Clearance Height | 11 inches (Fully Collapsed Position) |
| Platform Deck Length | 32 inches |
| Platform Deck Width | 16 inches (41 cm) |
| Total Outer Length Footprint | 33.5 inches Base Width |
| Scissor Structural Lift Style | Heavy Duty Manual Single Scissor Arrangement |
| Lift Mechanical Drive | Foot Pump Operated Hydraulic Ram Cylinder |
| Lowering Control Action | Handle-Mounted Trigger Lever Bleed Release Knob |
| Platform Safety Liner | 3mm Removable Textured Non-Slip Anti-Vibration Rubber Pad |
| Total Wheel Count | 4 Wheels (2x Fixed Front Wheels, 2x 360° Rear Swivel Casters) |
| Braking Safety System | Dual Rear Mechanical Foot Lever Locking Brakes |
| Structural Framing Metal | Thickened High-Tensile Structural Carbon Steel Tubing |
| Frame Protective Treatment | Impact-Resistant, Rustproof Industrial Powder Coating Finish |
| Built-In Operator Safety | Overload Safety Maintenance Bar & Limiter Protection Valve |
| Color Finish Profile | High-Visibility Safety Orange and Black Finish |
| Product Net Weight | 125.7 LBS (57.01 kg) |
Garvee Heavy Duty 1100 LBS Hydraulic Lift Table Cart - Manual Single Scissor Lift Jack Platform Trolley with 35" Max Height, Locking Swivel Wheels, and Non-Slip Rubber Pad, Orange and Black

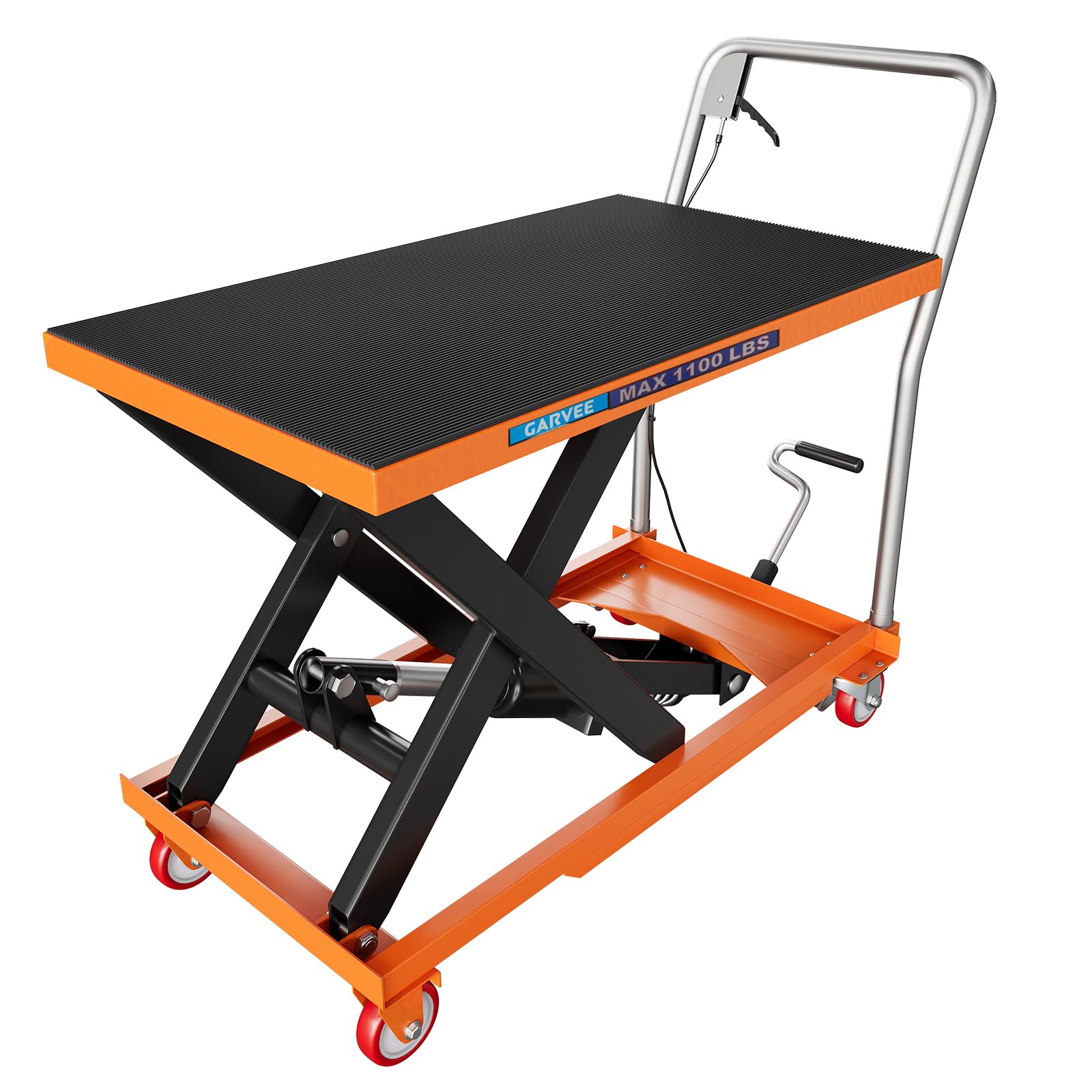

Garvee Professional 1100 LBS Hydraulic Single Scissor Lift Table Cart
Bring heavy-duty lifting power, seamless mobility, and ergonomic safety to your daily workflow. The Garvee 1100 LBS Hydraulic Lift Table Cart is a professional-grade single scissor platform trolley engineered to move and hoist heavy materials with absolute precision. Forged from thickened structural steel with a premium rust-resistant powder coating, this cart lifts payloads up to 1100 lbs from a low 11" clearance up to a 32" peak workspace height. Featuring an easy-to-use manual foot pedal, integrated safety limiter protection, an overload maintenance bar, and a thick 3mm non-slip rubber mat, it is the ultimate tool for mechanics, warehouse teams, and factory operators looking to maximize productivity safely.
Protect Your Workers from Back Injuries and Stop Struggling with Misaligned Loads
Manually lifting heavy engines, industrial pumps, large toolboxes, or bulk inventory from the floor to workbenches is the leading cause of costly workplace back strains and accidental equipment damage. Standard flat utility carts help with transport, but they still require manual lifting at both ends of the trip. The Garvee Hydraulic Scissor Lift Cart bridges this operational gap entirely. By functioning as both a heavy-duty rolling platform and an adjustable-height lifting jack, it allows a single worker to wheel cargo straight to a workbench, pump the foot pedal to match the exact height, and slide the item across smoothly without any strenuous lifting or bending.
Premium Engineering Features

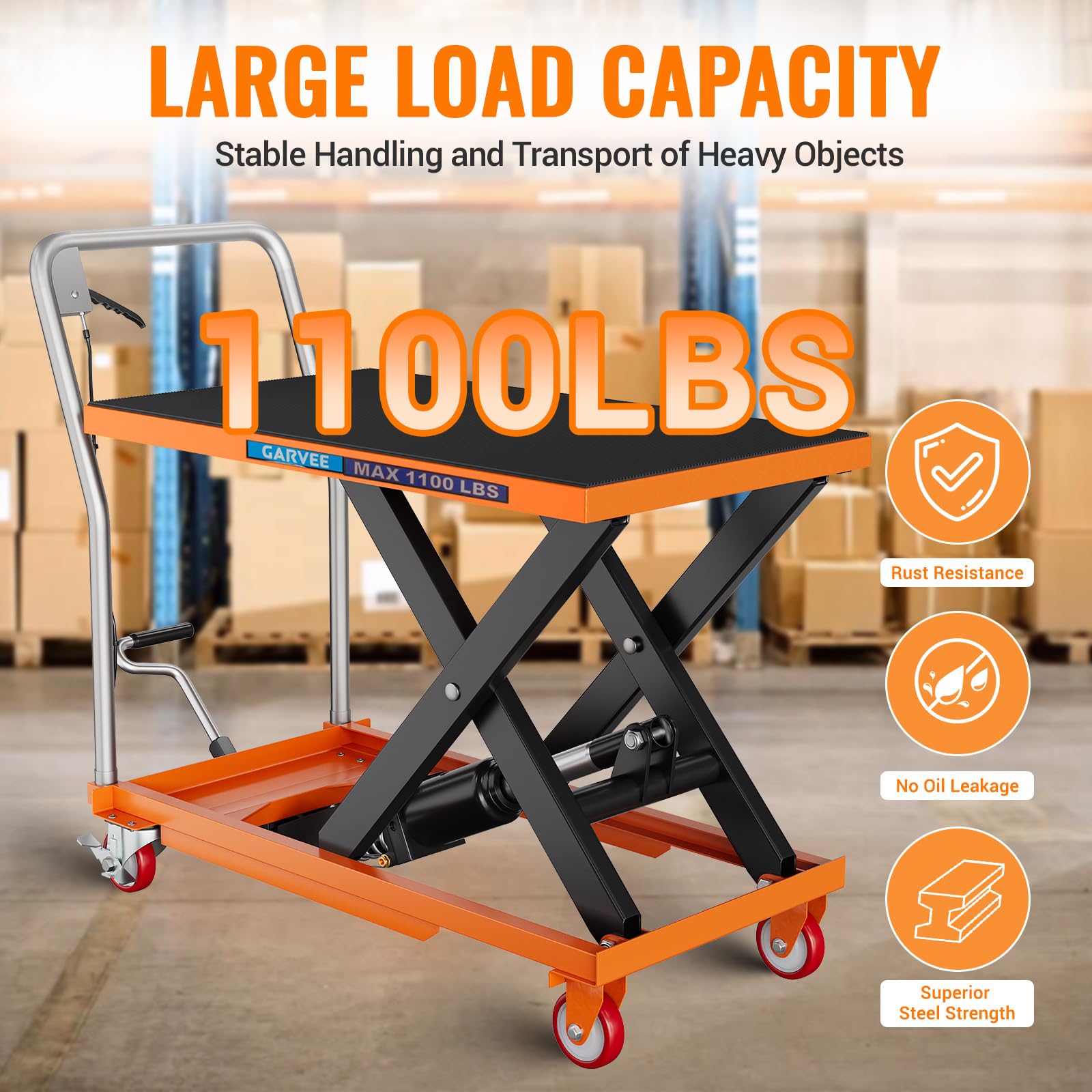

🏋️ Thickened Structural Steel Frame Rated for 1100 LBS

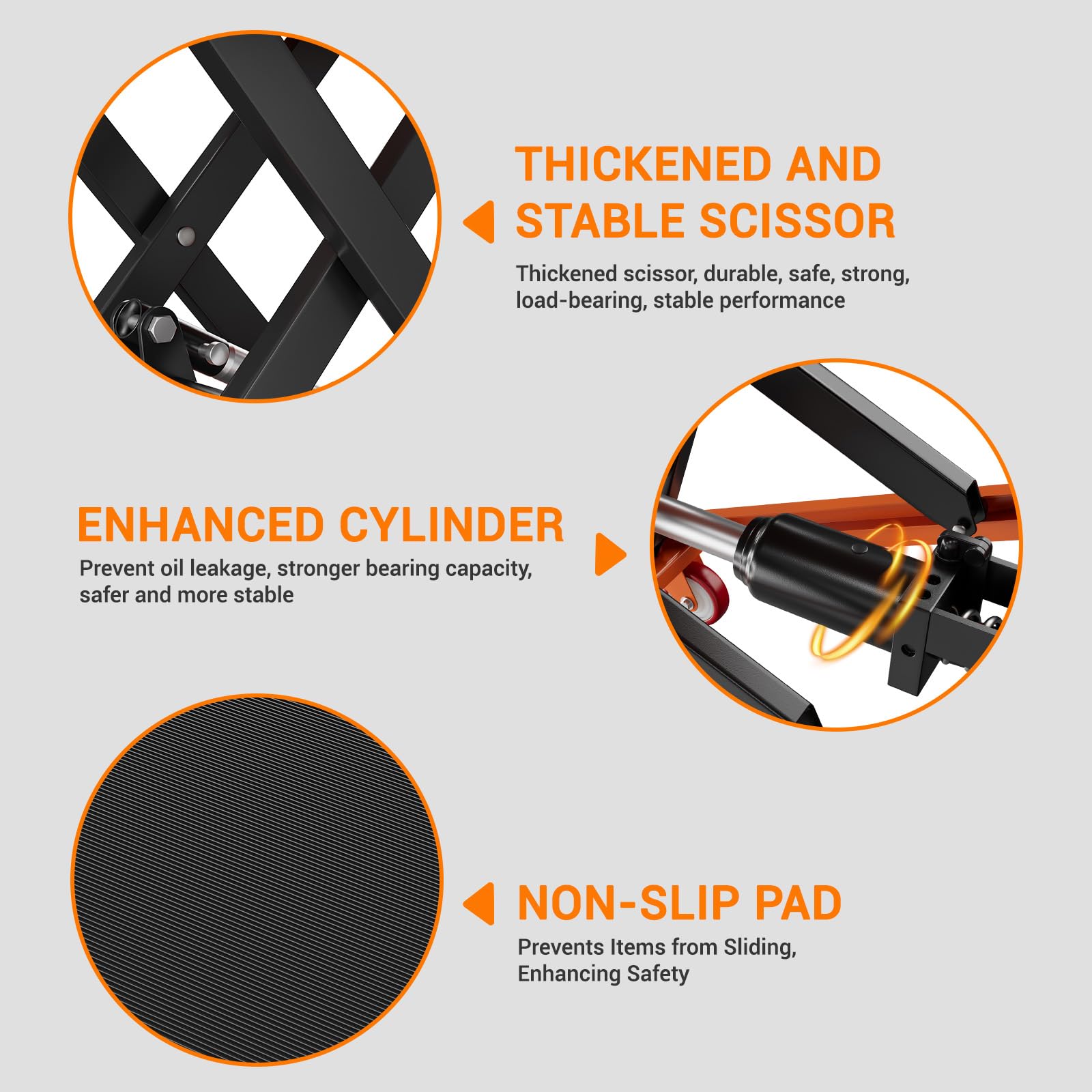

Uncompromised durability under structural stress. Built from reinforced, industrial-grade steel plates and an ultra-rigid single scissor mechanism, this lifting cart maintains perfect tracking and balance. The entire unit is coated in a high-visibility orange and black powder finish that shrugs off scratches, grease, oils, and workshop chemicals.

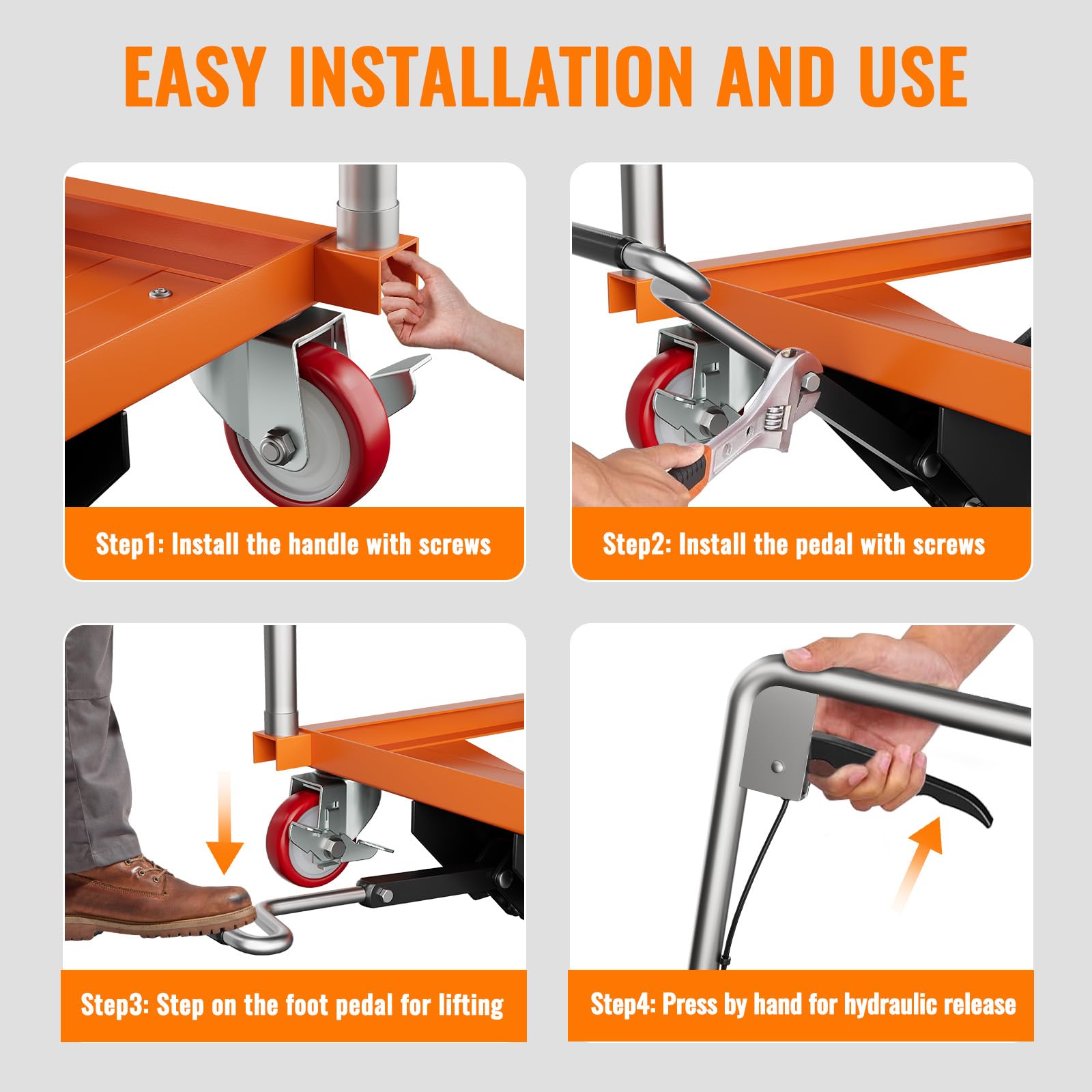

🦵 Hydraulic Pump Foot Pedal & Lever Lowering Control
Effortless, fine-tuned height adjustments. The heavy-duty hydraulic cylinder is actuated by an anti-slip, low-resistance foot pump pedal that makes lifting heavy loads quick and easy. When it is time to unload, simply pull the ergonomic hand-grip lever on the handle for smooth, controlled hydraulic fluid release and gradual lowering.
🧼 32" x 16" Deck with 3mm Shock-Absorbing Non-Slip Rubber Pad
Keep your valuable payloads firmly anchored. The spacious 32-inch by 16-inch steel deck includes a premium, 3mm thick textured rubber pad. This oil-resistant liner prevents heavy metal parts, dies, or engines from sliding around while pushing the cart across bumpy shop floors, keeping both your items and your operator safe.

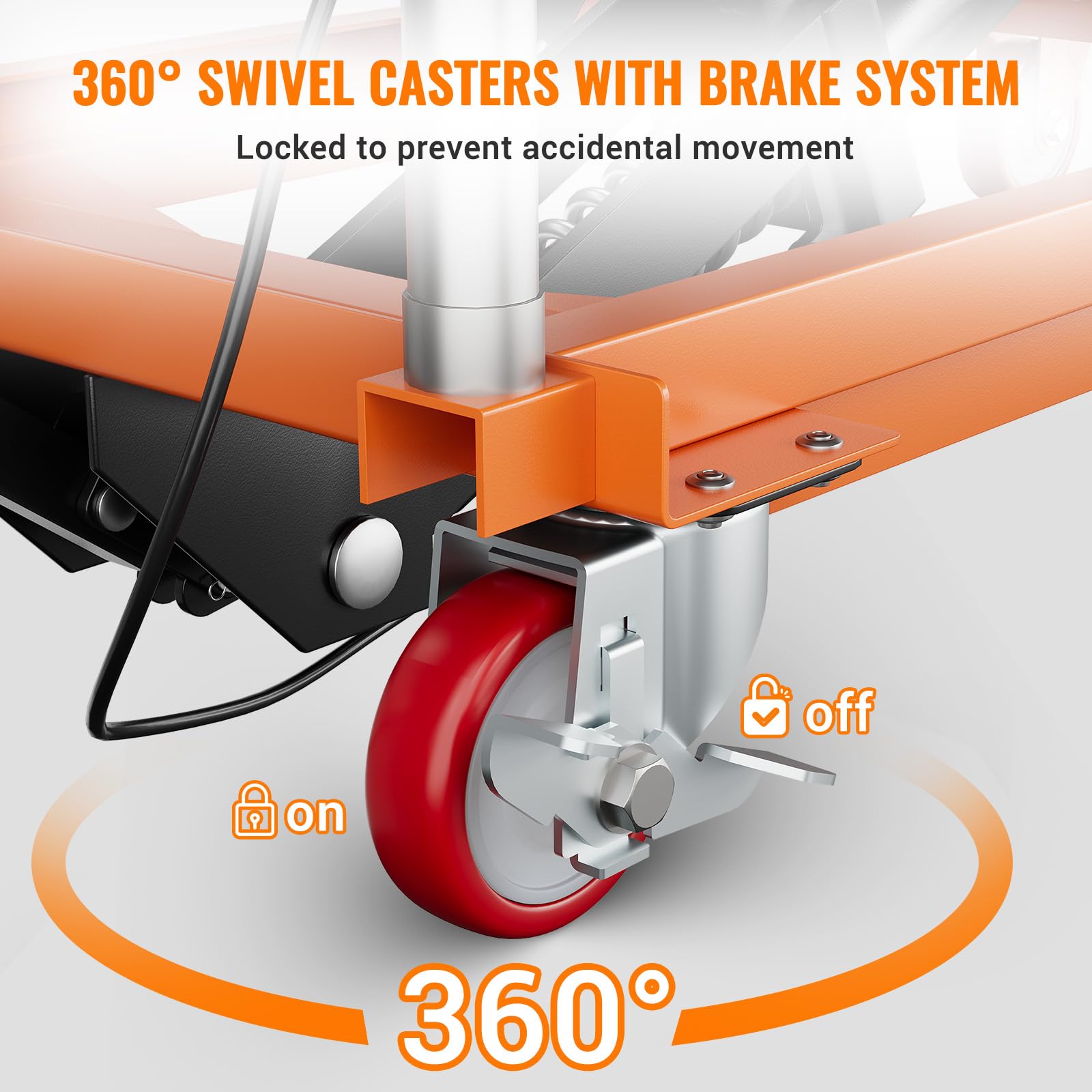

🔒 360° Swivel Polyurethane Wheels with Dual Mechanical Brakes
Seamless maneuvering through narrow workshop aisles. The cart rolls on four premium wheels, featuring two fixed front wheels and two rear 360-degree swivel casters that allow you to pivot smoothly around tight corners. Foot-activated mechanical locks secure the wheels quickly to provide a rock-solid, motionless platform while loading.

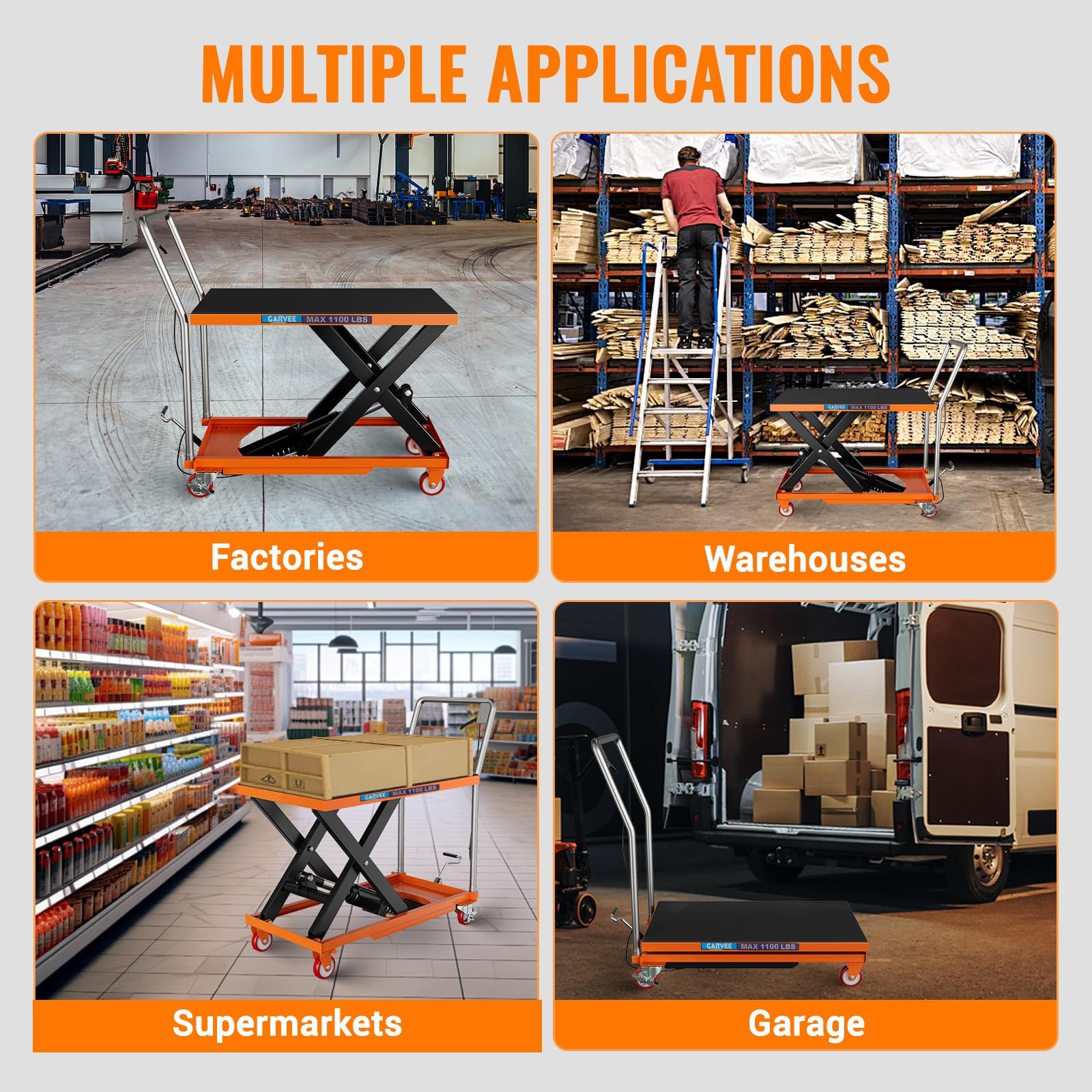

Multi-Scene Workplace Applications
Engineered for premium structural utility, this manual hydraulic scissor lift cart is ideal for:
- Automotive Repair & Machine Shops: Easily transport and lift heavy engine blocks, transmissions, brake assemblies, and tooling dies up to comfortable workbench levels.
- Warehouse Logistics & Fulfillment Centers: Streamlines unloading heavy parcels from delivery vehicles and lifting components up onto mid-level storage racks.
- Manufacturing & Research Labs: Safely carries heavy testing machinery, metal sheets, chemical drums, and bulk processing equipment smoothly across the facility.
Reviews
Customer Reviews
I use this lift table in my garage for heavy boxes and tool cases. The foot pedal raises the platform smoothly, and the release handle lowers it with good control. It saves my back compared with lifting everything by hand.
This cart is probably more than I actually needed, but it's a great back saver. For now, it is my new generator stand and transport. No need to lug or lift it to load in my pickup or on the back of our rv trailer. Should make changing the oil and any other service on the generator much more convenient. The box was kind of beat up from transit but the lift cart is perfect new condition. Pumps up smooth and slight squeezes on the release lever provide a measured drop in height. Easy assembly, bearing in mind everything is fairly heavy. I used a back support to avoid injury. The wheels go with the overall construction. Very substantial, wide and thick, and look up to their task. The fit and finish is excellent. The few threaded bolts and cotter pin bolts that were used to finish assembly fit perfectly and were also high quality. I am already thinking of additional uses like loading a large spare tire or heavy bags of garden soil.
Birthday gift for my husband. He loves it!
The steel frame feels sturdy, and the platform is a good size for small shop jobs. I use it mostly for parts and equipment.
